Product image
TY-XL022-A

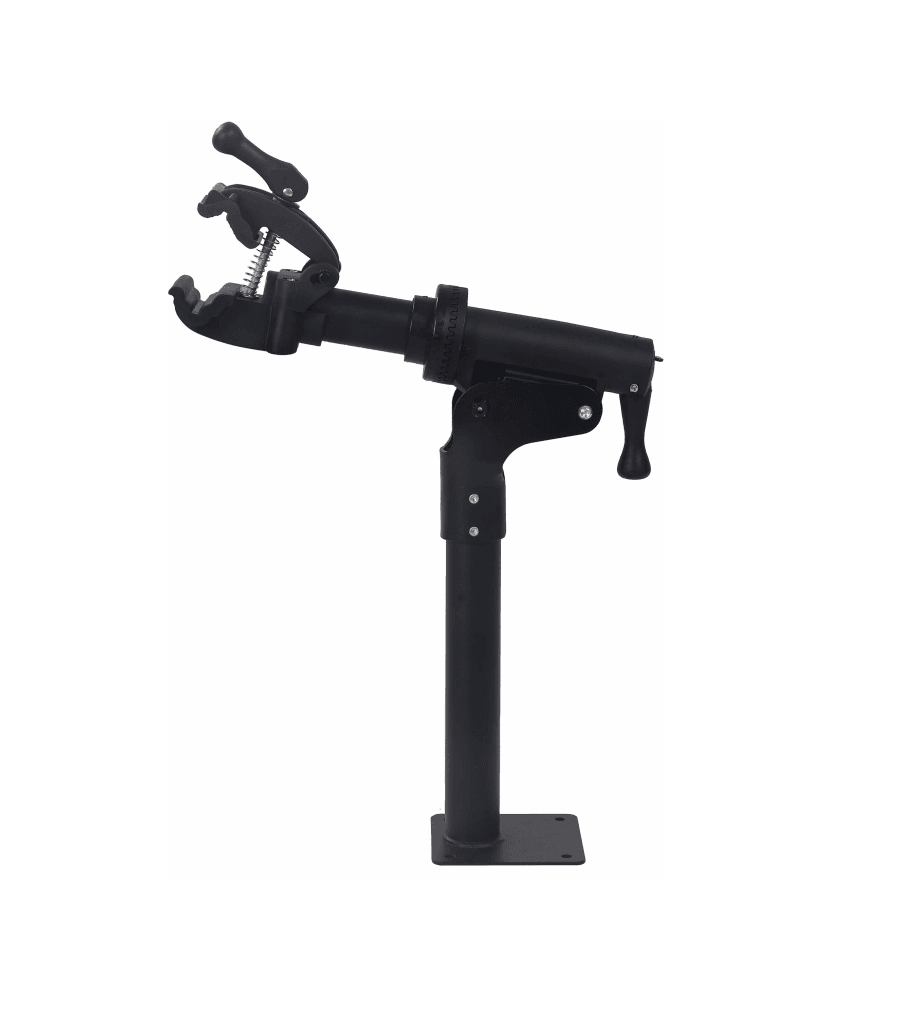

Steel Bench Mount Bike Repair Stand

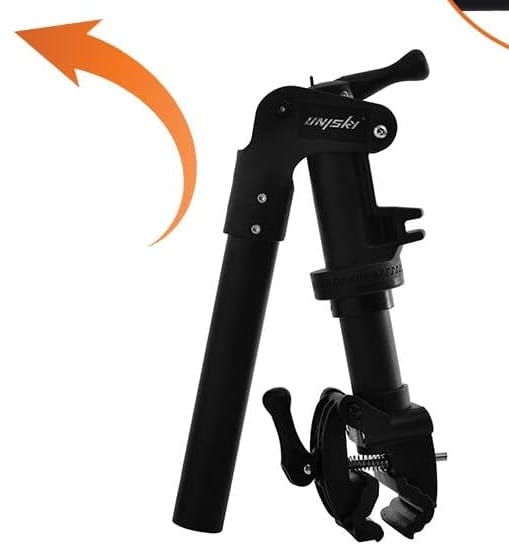

The Unisky TY-XL-022-A versatile bicycle repair stand serves as a compact repair stand and is equally effective for hanging, displaying, or storing bicycles. Built from sturdy steel, it offers reliable load-bearing performance with a rated capacity of 25 kg(50 lbs). Designed for wall mounting, it should be installed on solid brick, concrete, or solid wood walls for secure use. With the quick-release handle and the turning button, the clamp head rotates in 360 degree, easy for you to reach every part of a bike. To enhance safety, the fixed sleeve rod can be used to adjusted to securely hold the bicycle’s front handlebar or wheel in place. When not in use, the workstation folds compactly for easy storage.

Key Features

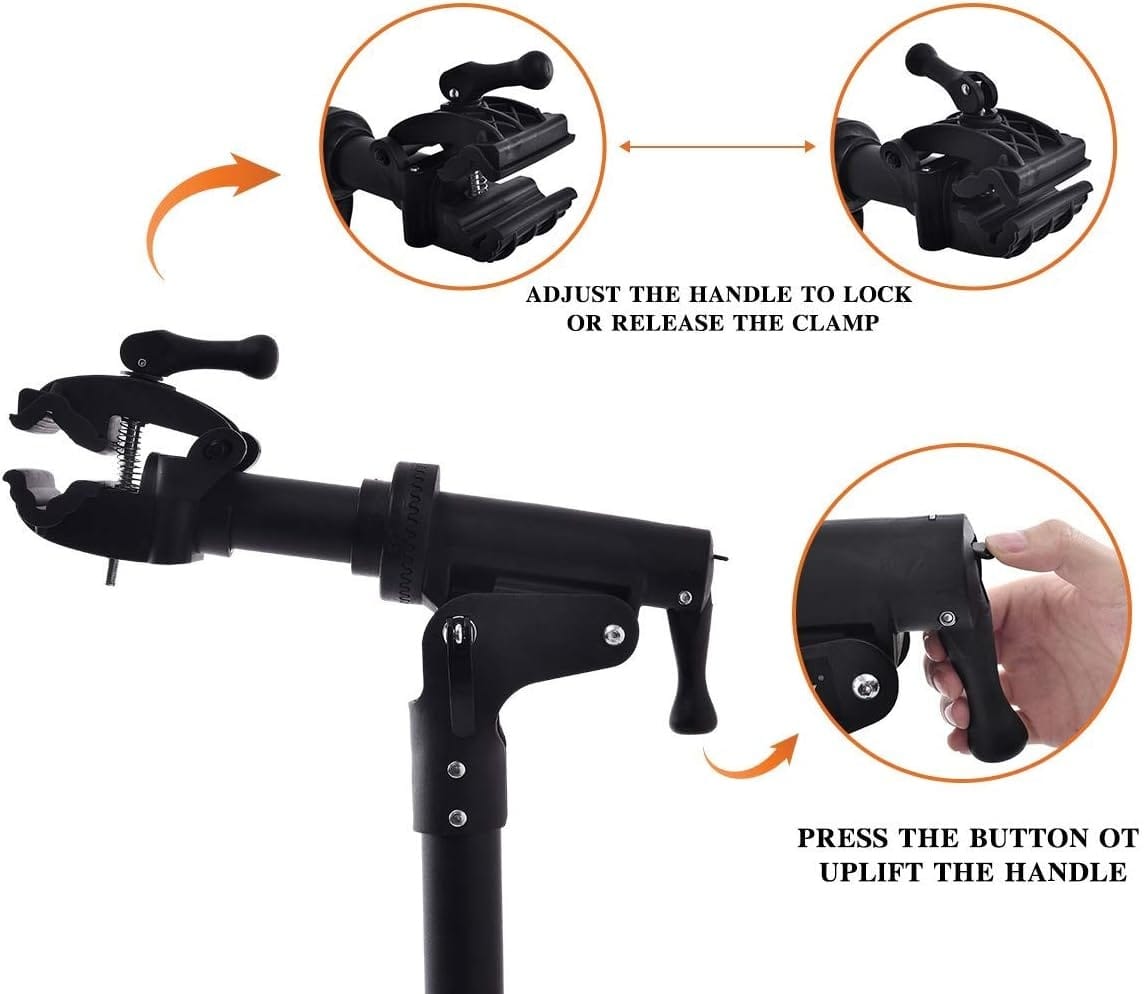

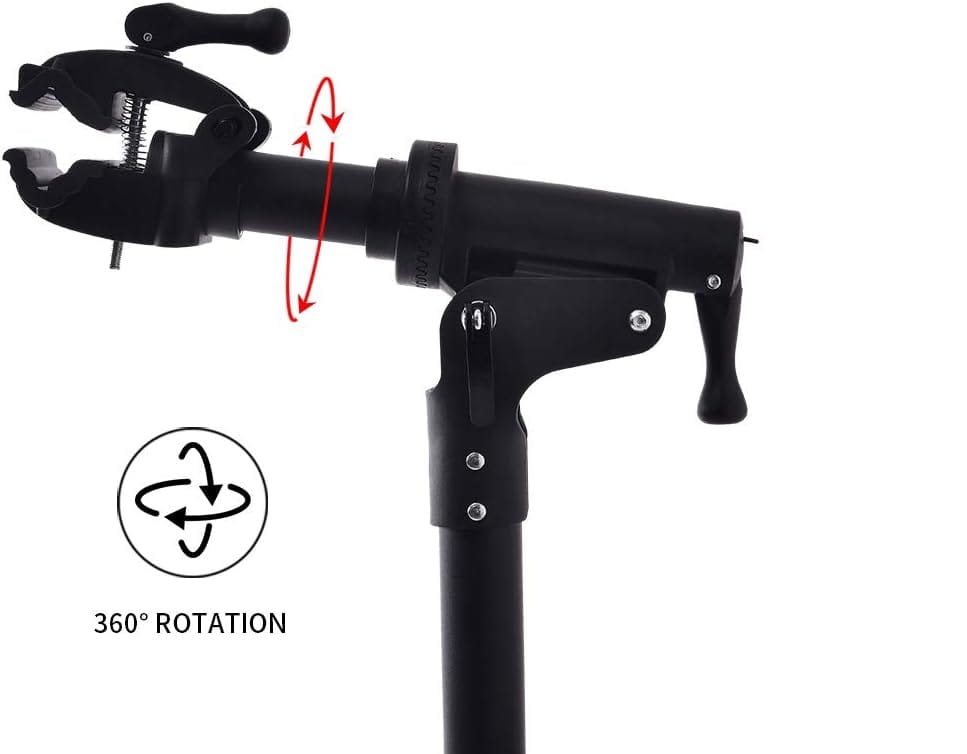

  • 360 DEGREE ROTATING: With the quick-release handle and the turning button, the clamp head rotates in 360 degree, easy for you to reach every part of a bike, facilitating your work when repairing, holding tightly but will not damage the bike’s finish.
  • STEADY AND STABLE: This desk-mount repair stand is firmer and more stable than normal floor one. By stabilizing and mounting in surface, it can help deal with difficult bike maintenance work. Even when taking the front or rear wheel off during repairing, it is still stable.
  • SUITABLE FOR ANY FLAT SURFACE: You can mount this bike repair stand to any flat surface. Then dealing with bicycle maintenance works becomes convenient, such as removing pedals and installing pedals. Mounting bolts is NOT included in the package, please choose suitable bolts according to the surface you need to install on.
  • DURABLE AND STRONG: The teeth and clamp of the bike repair stand are well made and heavy duty. The maximum weight capacity of the bike maintenance rack is 55lbs(25kgs), and round crossbar of bike ranges from 1”-1.57”. Premium steel tube is the main part of the bike workstation, so it is useful for a long time.

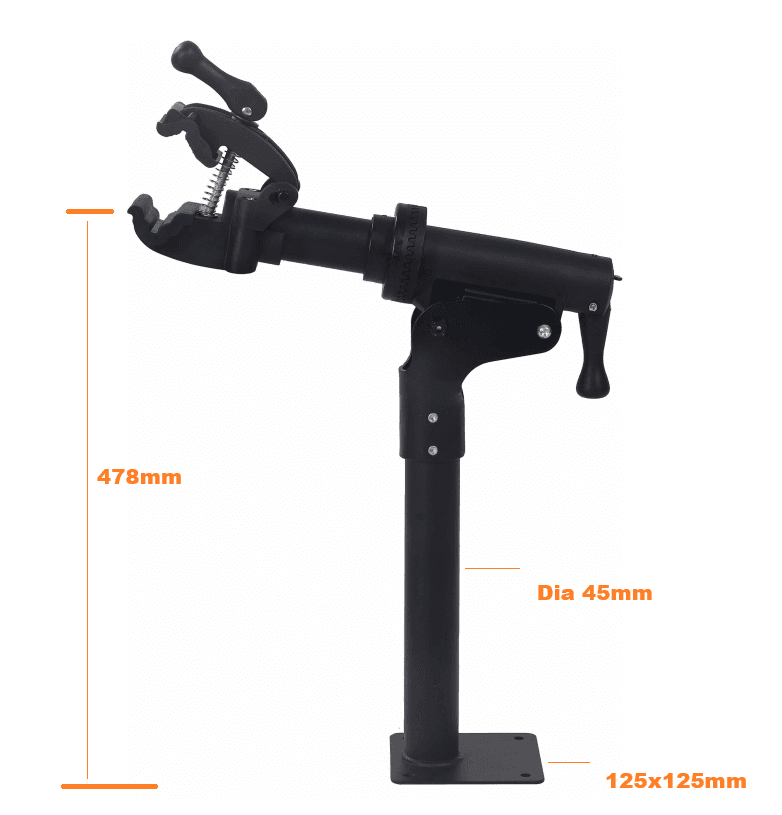

  • SIZE INFO: The height is about 19.69”, from the bottom to the upper part of the clamp. The width is about 14.96”, from the front part of the clamp to the turning button. The distance between holes at the bottom is about 5.12”. Before assembly, please measure the size between holes on the surface at first.

PRODUCT DETAILS

Specifications

Material
Carbon steel, Aluminum alloy、 PA、TPR
Lift Height
As needed
Clamp capacity
25~50MM
Standard lift capacity
25KGS
Tube Diameter
φ44、φ45mm
Measurement
47*21*18.5cm
Gross weight
3.5Kgs
Net weight
3 Kgs
